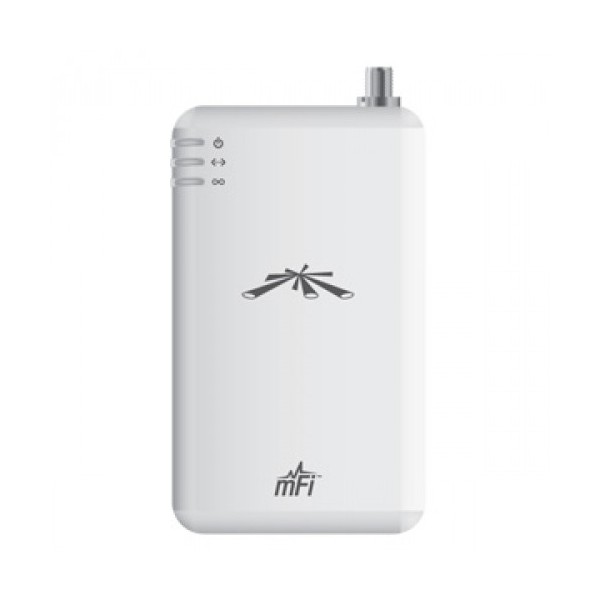

UBNT mFI mPort Serial
mPort supports up to 3 sensors that can be easily attached through standard Cat5 Ethernet cable. The mPort features built-in Wi-Fi and Ethernet to attach the sensors to the IP network.
Valiuta
Kategorijos
- Optinio tinklo įranga
-
Tinklo įranga
- Antenos
- Apsaugos nuo viršįtampių
- Jungiamieji kabeliai
- Jungtys
- Kabeliai
- Maitinimo šaltiniai
- MikroTik aksesuarai
- MikroTik bevieliai įrenginiai
- MikroTik bevieliai maršrutizatoriai
- MikroTik komutatoriai
- MikroTik maršrutizatoriai
- MikroTik prieigos taškai
- MikroTik routerboard
- mPCI WiFi kortelės
- UBNT AirMax bevieliai įrenginiai
- UBNT antenos
- UBNT UniFi bevieliai įrenginiai
- Vaizdo stebėjimo įranga
- TV Priedėliai
- Energetika
- Išpardavimas
- M2M Įrenginiai
- VoIP
|
Dimensions |
100 x 60 x 27.5 (H x W x D) |
|
Weight |
120g |
|
Power supply |
24V, 0.5A Surge Protection Integrated PoE Adapter (Included) |
|
Max power consumption |
3 W |
|
Networking interface |
1 x 10/100 Ethernet Port |
|
Ports |
1 x DB9 Serial Port |
|
WiFi standard |
802.11/b/g/n |
|
Serial protocols |
RS232, RS422, RS485 |
|
Memory |
16 MB RAM |
|
Flash |
8 MB |
|
LED's |
3 LEDs (Power, Ethernet, Status) |
|
Mounting |
Wall-Mount Bracket (Included) |
|
Operating temperature |
-10° to 70° C |
|
Operating humidity |
5 to 80% Condensing |

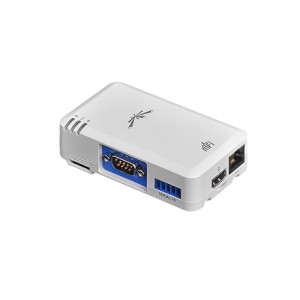

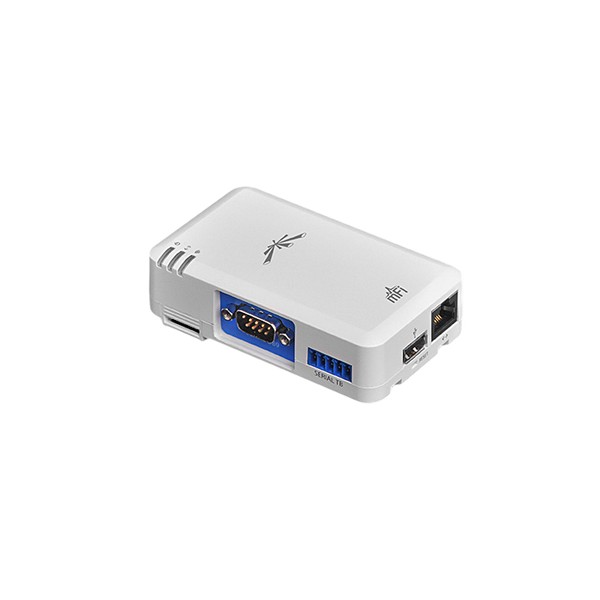

mPort Serial features RS232 serial connectivity through a standard DB9 serial port.
Once a machine is connected through the serial interface, the mPort Serial can attach to the IP network using built-in Wi-Fi or Ethernet.
From there, a terminal screen can be launched through the mFi controller software to control the connected machine.

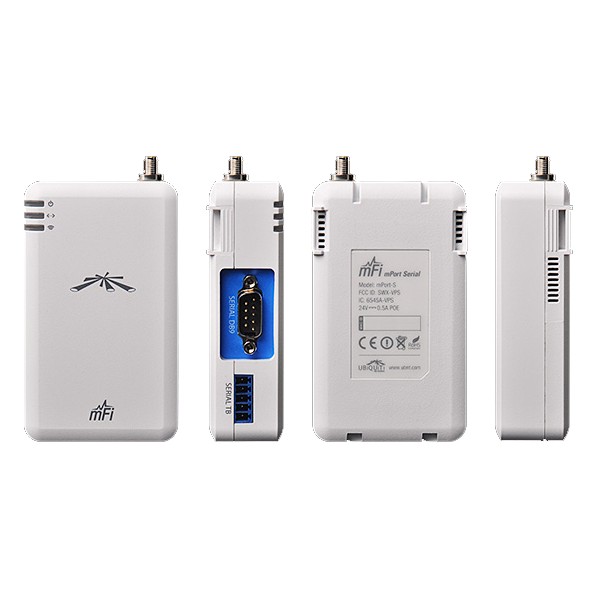

The mPort Serial also features an external antenna connector to support longer range industrial applications.
