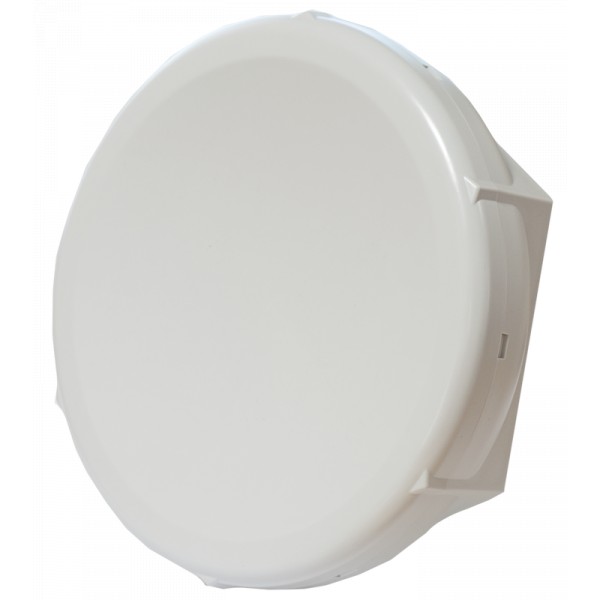

The SEXTANT is a 18dBi 5GHz antenna with a built in RB711 router. It has two polarizations to give you all benefits of 2x2 MIMO in 802.11n. The new SEXTANT is very similar to the popular SXT unit, just slightly bigger. Inside is the brand new RB711-5HnD dual chain wireless device, with high performance, high output power, and low power requirements. Easy to use and quick to deploy, SEXTANT is ideal for point to point links.

Frequencies 5.17 - 5.825 GHz
Gain 18dBi
VSWR 1.6:1
3 dB Beam-Width, H-Plane 16.8 °
3 dB Beam-Width, E-Plane, typ. 22.8 °
Polarization Linear, Vertical and Horizontal
Port to Port Isolation - 35 dB
