Frequency (MHz) / Attenuation (dB/100m)

30 (MHz) ~ 4.4 (dB/100m)
50 (MHz) ~ 5.7(dB/100m)
150 (MHz) ~ 9.9 (dB/100m)
220 (MHz) ~ 12.0 (dB/100m)
450 (MHz) ~ 17.3 (dB/100m)
900 (MHz) ~ 24.8 (dB/100m)
1500(MHz) ~ 32.4 (dB/100m)
1800(MHz) ~ 35.6 (dB/100m)
2000(MHz) ~ 37.7 (dB/100m)
2500(MHz) ~ 42.4 (dB/100m)
5800(MHz) ~ 66.8 (dB/100m)

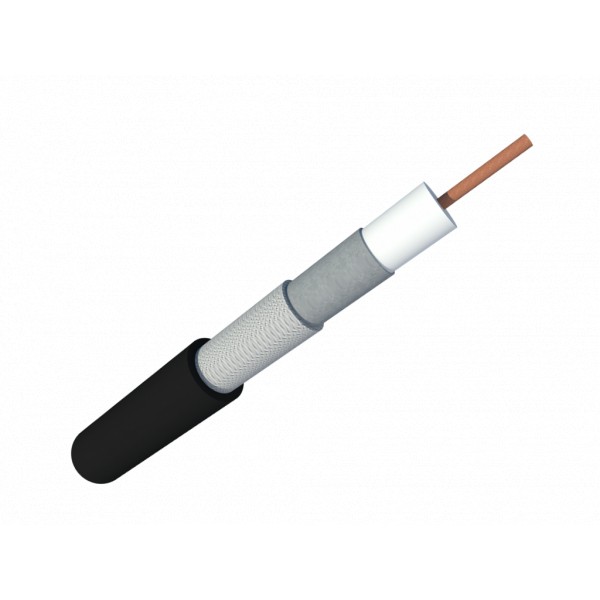

Center conductor

1.42mm BC

Dielectric

3.81mm FPE

Shielding foil

AL/PE

Outer conductor

96x0.16mm TC

Jacket

6.10mm PVC

Capacitance

80pF/m

Impedance

50 +- 3 Ohms

Screening efficiency

>95dB

Min. bending radius

5 x diameter of cable

Velocity ratio

0.83

Velocity of propagation

0.85

Packing

305m

In box

1x305m=305m

Operating temperature

-40~+85
