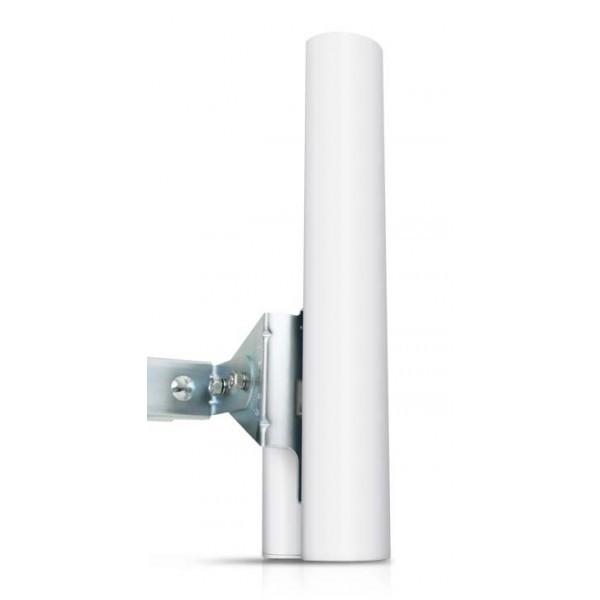

17dBi 90° 5GHz Sector Dual AirMax Antenna
17dBi 90° Dual AirMax sector antenna. Perfect for use with Rocket M5.
17dBi 90° Dual AirMax sector antenna. Perfect for use with Rocket M5.
Type |
Sector |
Frequency Range |
4,900-5,900MHz |
Gain |
17dBi |
Polarisation |
Vertical or Horizontal |
Beamwidth |
93°V 72°H |
Eclosure for AP |
No |
Connector |
2 x RP-SMA |
Cover Material |
Plastic |
Base Material |
Aluminium |
Mount |
Pole mount |
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
